XG22-EK2710A Explorer Kit, EFR32MG22E224F512IM40, IoT, ZigBee Wireless SoC

1,927.74 Including Tax

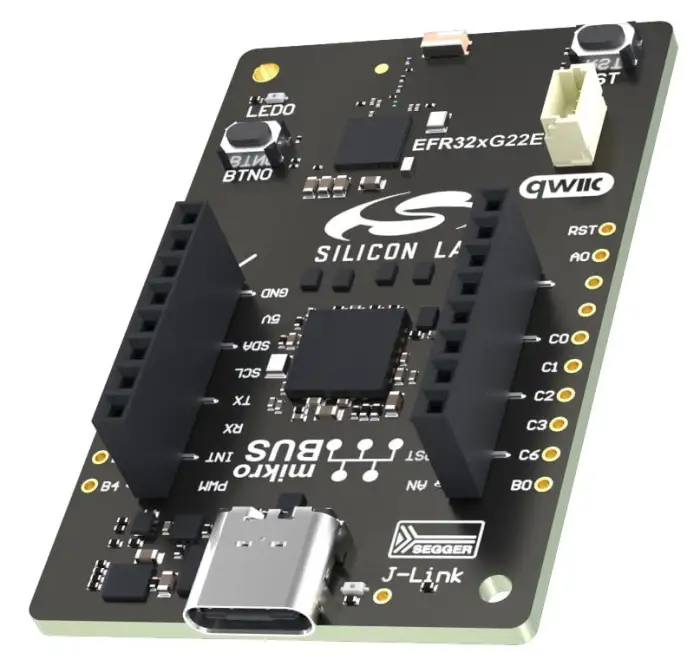

XG22-EK2710A is an EFR32xG22E explorer Kit. It is an ultra-low-cost, small form factor development & evaluation platform focused on rapid prototyping & concept creation of EFR32xG22E Bluetooth LE IoT applications. The kit features a USB interface, an on-board SEGGER J-Link debugger, one user-LED & button, & support for hardware add-on boards via a mikroBus socket & a Qwiic connector. The hardware add-on support allows developers to create & prototype applications using a virtually endless combination of off-the-shelf boards from MIKROE, SparkFun, Adafruit, & Seeed Studios.

3 in stock

Description

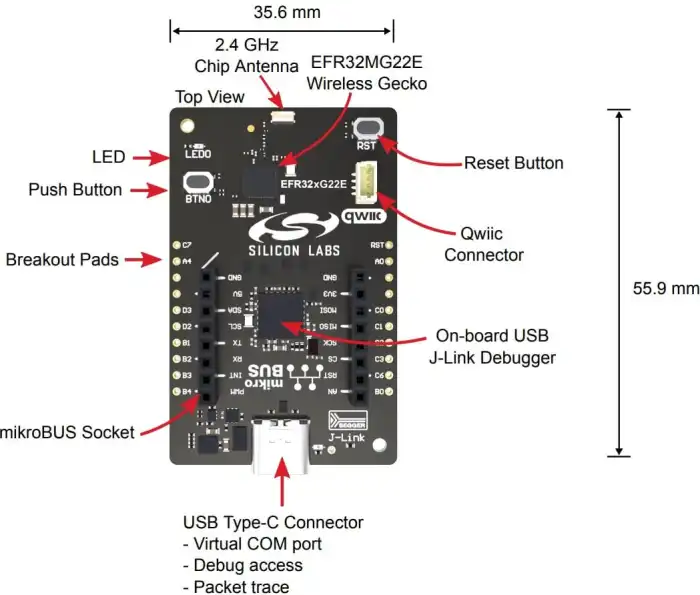

  • Based on EFR32MG22E224F512IM40 2.4GHz wireless SoC
  • 6dBm, 512kB flash, 32KB RAM, QFN48 package
  • One LEDs & a push buttons
  • Reset button
  • USB connector for power & debug connection
  • On-board SEGGER J-Link debugger
  • Virtual COM port, Packet Trace Interface (PTI)

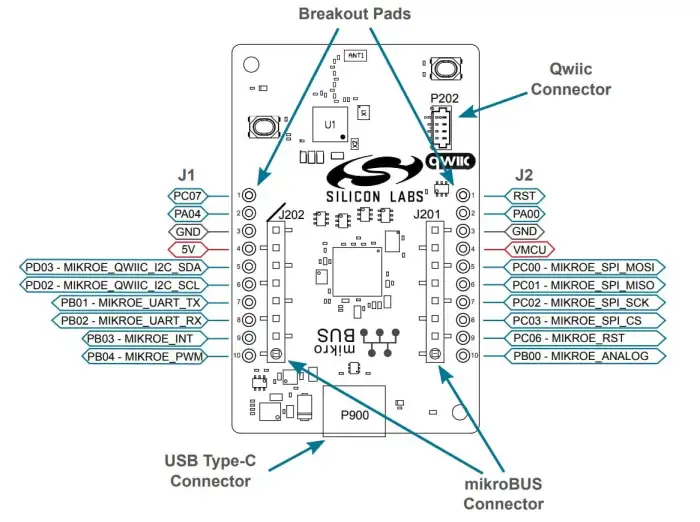

  • Breakout pads for GPIO access & connection to external hardware
  • mikroBUSâ„¢ socket & Qwiic® connector (third-party add-on connectors)
